Product Information

Item No. :

 C213113
Prouduct name :

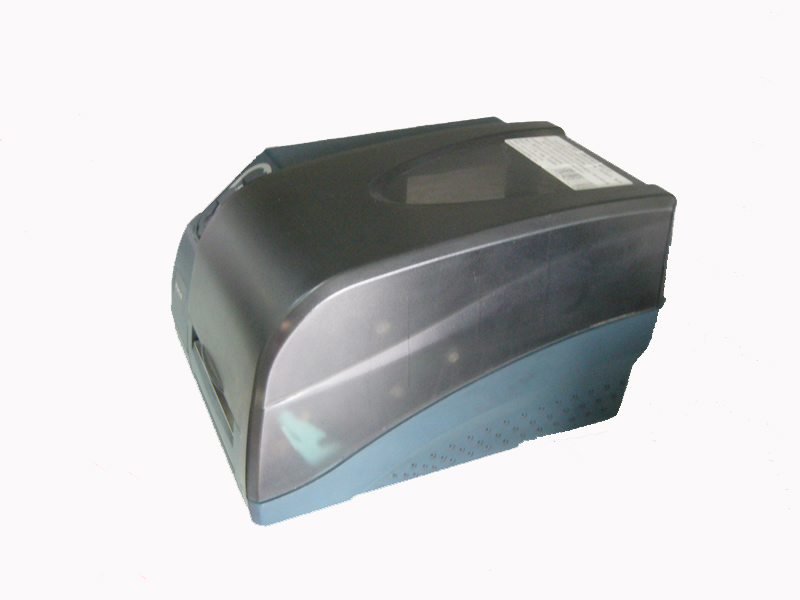

 Label machine

Description :

 "R-600 The R-600 inherits the Refine Series' mechanism. Loading capacity accommodates a maximum 360M ribbon roll and 6"" OD media supply. Adjustable media guide with centralized alignment fits all variable media from 10mm to 110mm. Easy access via a three-button control panel saves time and requires minimal training allowing the benefits of easy and fast handling. Built-in universal switch power offers 100% flexibility to fit in any local application environment, and it is lightweight, space-saving, and easy to handle. The R-600 maintains high quality printing with 300dpi resolution making it the value-added printer of choice for textile and care labeling applications. Specifications Printing method Direct thermal & thermal transfer Printing resolution 300 dpi (12 dots/mm) Printing Speed 2 ~ 4 ips (51~ 102 mm/s) Printing Length Max 14¡± (355.6mm) Printing Width MAX 4.0¡± (101.6 mm) Memory 2MB DRAM, 1MB Flash ROM Ribbon Wax, Wax/Resin, Resin with inside coating Ribbon width ¨C 2¡±, 4¡± / Ribbon roll ¨C max OD 2.67¡± (68 mm) Ribbon length ¨C max 360M wax, 300M Resin) / Core size - ID 1¡± core (25 mm) Communication interface Centronics parallel / RS-232 serial Power Source 110/220 VAC ¡À 10%, 50/60 Hz, internal Universal Power supply Agency listing CE, UL, CUL, FCC class A, CCC Dimensions W314 x H231 x L218mm, 9.3 lbs (4.2 kgs) Graphics PPLA: PCX, BMP, IMG, HEX, GDI PPLB: PCX, Binary raster, GDI Fonts Int'l character sets standard 5 alpha-numeric fonts from 0.049¡±~ 0.23¡±H (1.25mm~6.0mm) All fonts are expandable up to 24x 24 4 direction 0¡ã~270¡ã rotation Soft fonts are downloadable Barcodes Code 39, Extended Code 39, Code 93, Code 128 UCC Code 128(Subset A, B, C) Codabar, Interleave 2 of 5, EAN-8 2&5 add on, EAN-13, EAN-128, UPC, UPC-A, E 2&5 add on, POSTNET, German POST, Matrix 25, Maxicode, PDF-417, Data Matrix Software ARGOX PPLA & PPLB Language / Windows Driver (Win98/2000/NT/XP) Label editing software ¨C ArgoBar / Printer Utility Media Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label with face-in media run way Max width 4.3¡± (110 mm) / Min width 1¡± (25 mm) Thickness 0.0025¡±~. 01¡± (0.0635mm ~0.254mm) Max roll capacity 6¡± (152 mm) OD / Core size 1¡±~1.5¡± (25mm~37 mm) ID (Core sized3¡±ID can be installed by media core adapter) Optional items Cutter, Dispenser kit, Real time clo

Quantity/Carton :

 1 sets
Volume/Carton (m3) :
 0.01
Unit Price (US $) :
 Sorry, please read it after login.
